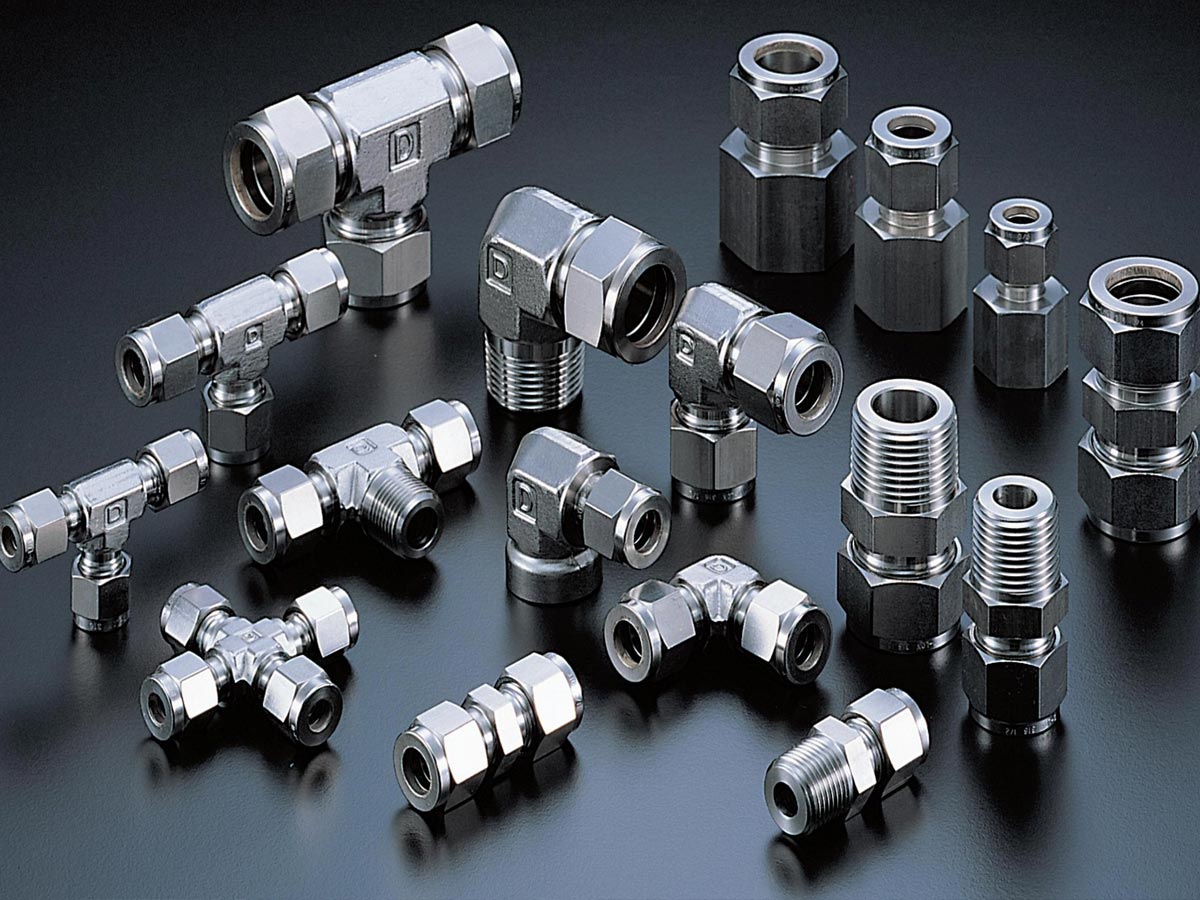

Ferrule fittings connect and seal tubes in a hydraulic or pneumatic system. They provide a strong and leak-proof connection and are crucial in applications with high pressures, vibration, and temperature changes. For a quick comparison, single ferrule fittings are typically used for low-pressure applications, less demanding environments, and they are cheaper than double ferrule fittings. Double ferrule fittings are typically used for high- pressure applications and when superior sealing performance and reusability are required.
Ferrule fittings connect and seal tubes in a hydraulic or pneumatic system. They provide a strong and leak-proof connection and are crucial in applications with high pressures, vibration, and temperature changes. For a quick comparison, single ferrule fittings are typically used for low-pressure applications, less demanding environments, and they are cheaper than double ferrule fittings. Double ferrule fittings are typically used for high- pressure applications and when superior sealing performance and reusability are required.
1.Double Ferrule Compression Fittings (Swagelok Type) Double Ferrule Compression Type (Swagelok Type) generally manufactured in S.S. Construction is available in the size range from 1/16" to 2"OD or 1.6MM to 50MM OD.
2. Single Ferrule Compression Fittings (Parker Type) Single Ferrule Compression Type (Parker Type) generally manufactured in S.S. Construction is available in the size range from 1/16" to 2"OD or 1.6MM to 50MM OD

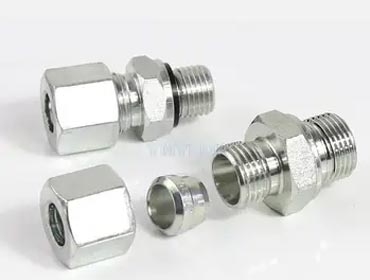

3. Single Ferrule Compression Fittings (Ermeto Type )Single Ferrule Bite Type (Ermeto Type) generally manufactured in the C.S. Construction is available in the size range from 1/4" to 2"OD or 6MM to 50MM OD. Ermeto Type fittings are widely used in High Pressure & Hydraulic application

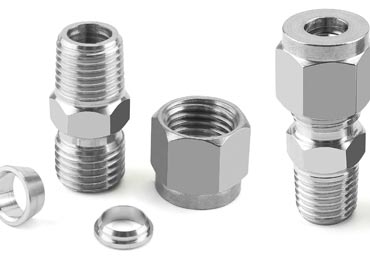

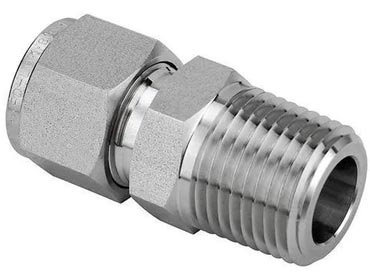

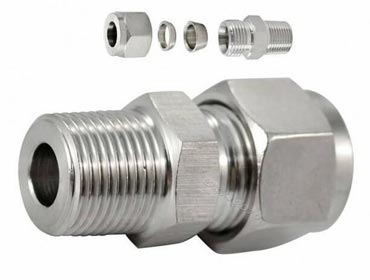

Male Connector Male connector is a type of widely used tube fittings to provide leak proof, torque free seal at various tubing connections and prevent costly and hazardous leaks in process tubing. We manufacture dimensionally accurate male connector. We are specialized in offering a wide range of male connectors that are available in various sizes and dimensions. The Male connector Consist Of four Elements The Body, The Nut, The Front Ferrule & The Back ferrule .Male Connector can be used in any line where the high pressure is required to control. It is available in 1/8, 1/4, 3/8, 1/2, 3/4 and 1. It is used in various industries including chemical, fluid power, petroleum, pulp & paper plant, etc. Its applications include control systems, instrumentations and equipments. The product has attributes of corrosion resistance, durability, and precise dimensions.

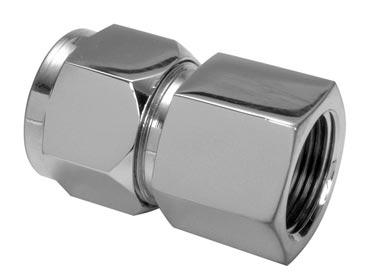

Female Connector Female connectors are used in piping of tube to female pipe thread fittings in order to provide tight, secure and leak-free connections and are widely used in Applications requiring high operating pressures (ranging from 3000 psi to 10,000 psi). We fulfill the demands of pipes and plumping industry by offering finest quality female connectors. The product is used to connect different pipes and allows easy flow of liquid through it. Made from quality materials, the female connector possesses features of corrosion resistance, easy installation, and leak proof. • Fractional sizes range from 1/8” inches Tube OD to 1” inch Tube OD. • Metric sizes range from 3mm Tube OD to 25mm Tube OD

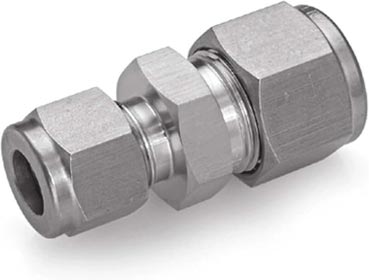

We offer different types of unions, which are extensively used for joining tubes/pipes in industrial applications. These unions are used to connect pipes or tubes of different dimensions. Our unions are available in standard specifications widely demanded across industries. Our range finds application in chemicals industries, fats & fertilizers industries and ship building.
Our range of female branch tee fittings is available in various threading such as NPT, MBTN & MMBTN. These female branch tee fittings are precision engineered and are used in various industrial tunings to join more than two pipes or tubes. Largely, these tee fittings are used to mix or separate fluids flowing through tubes. We offer superior quality tee fittings in standard and custom specifications and in most competitive prices.
